Note: This feature is planned for End of Life in September 2026

In order to enable calling of contacts from your touchpanel. You can upload a csv directly to your Synergy SKY Management Suite Configuration Tool.

Below is a short guide on how to do it and an example template of what to upload.

1. Download the phonebook.csv template file

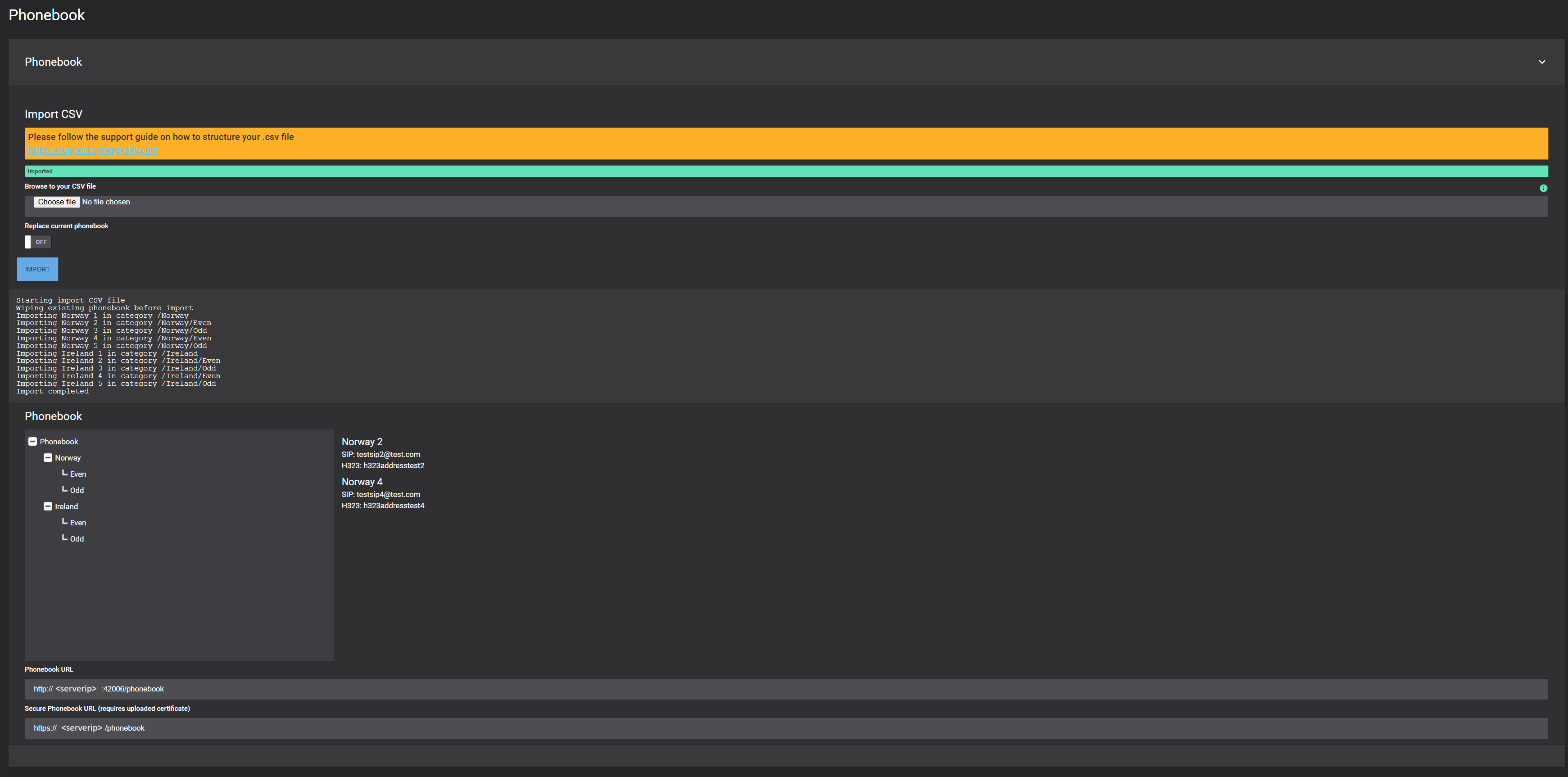

2. Edit the file with your own endpoints, this is explained below the screenshot
3. Log in to your config tool
4. Navigate to /General-Settings/Phonebook
5. Click "Choose file"
6. Select phonebook.csv
7. Click Import

The csv contains the following:

• Category - Where in the folder structure the address should be
  • Our example template separates endpoints between (top level) Norway/Ireland and then Odd/Even
• Name - The Name of the endpoint
• SIP - The SIP URI of the endpoint
• H323 - The H323 address of the endpoint
• Bandwidth (kbps) - The bandwith to initially set for the call
