Introduction

This guide provides a step-by-step walkthrough for integrating Pexip Infinity with Synergy SKY. By creating a connection between Pexip and Synergy SKY, organizations can automate meeting joins, enable One Button To Push (OBTP) functionality, and streamline the scheduling experience across video conferencing endpoints.

Prerequisites

• Pexip Username and Password that can make API calls
• Pexip Reverse Proxy information
• Default Dialout Location

Step-by-Step Guide

Adding Integration in Management SUITE

1. In Management SUITE, navigate to General Settings → Integration Settings

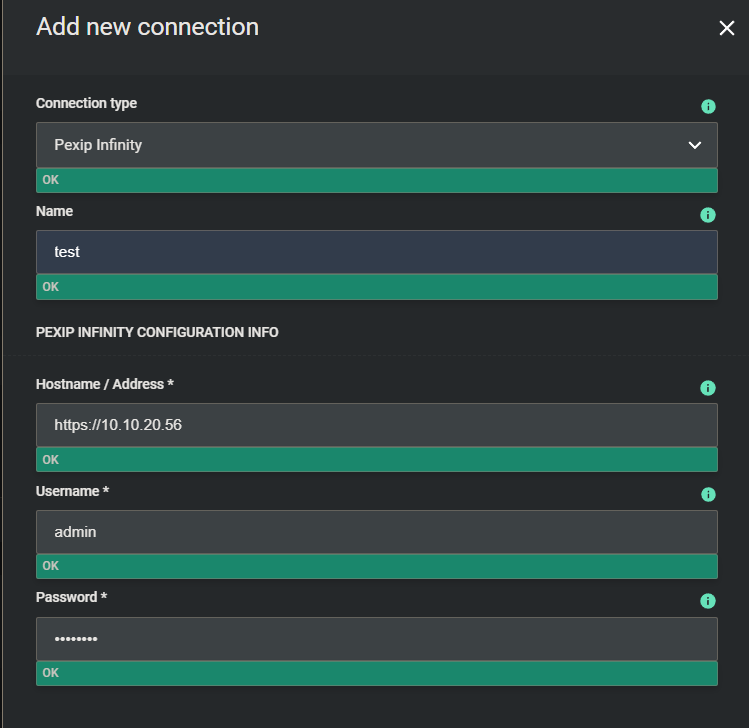

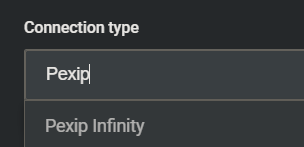

2. Click on ADD CONNECTION, Connection Type: Pexip Infinity

3. It will allow you to add a name to the integration, including basic information
   You will need to input your Pexip Infinity information here (hostname/address, username and password)

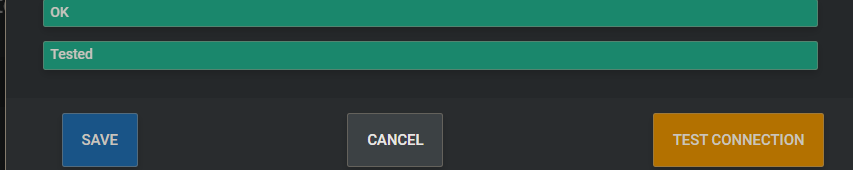

4. Click on TEST CONNECTION

5. Once tested successfully, click on SAVE and SAVE CHANGES

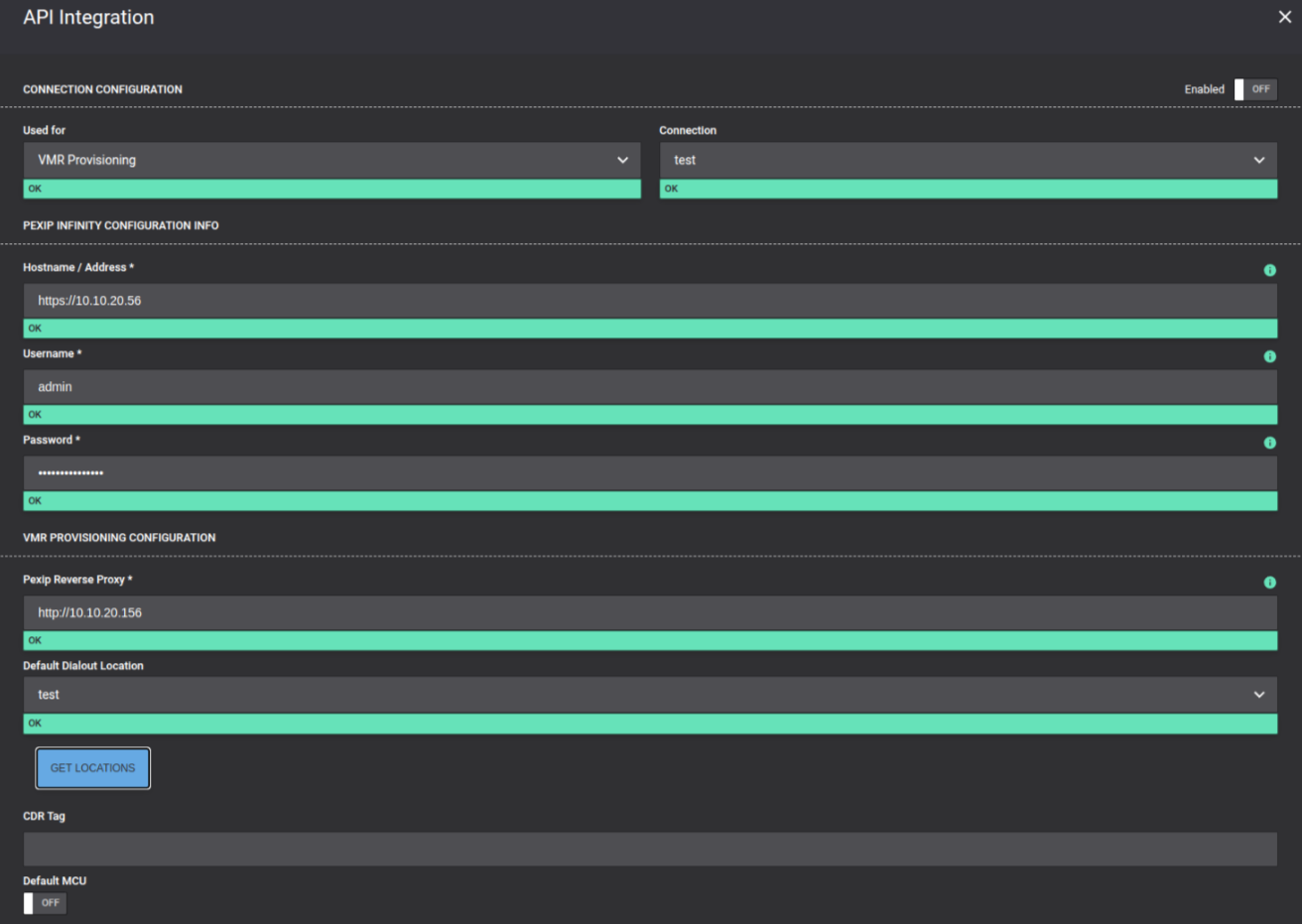

6. Click on ADD API INTEGRATION
7. Used for: VMR Provisioning
   Connection: Name of Integration provided
   The Pexip Infinity Configuration Info will auto-populate
   You will need to input the Pexip Reverse Proxy and Get Locations for your Default Dialout Location
   (optional): Add a CDR Tag and enabling Default MCU

8. Click on SAVE and SAVE CHANGES and deploy the config
